Amplificadores a alta y baja impedancia Clase D que proporcionan una solución de audio inteligente y sencillo para cualquier aplicación pequeña o mediana.
Alineación

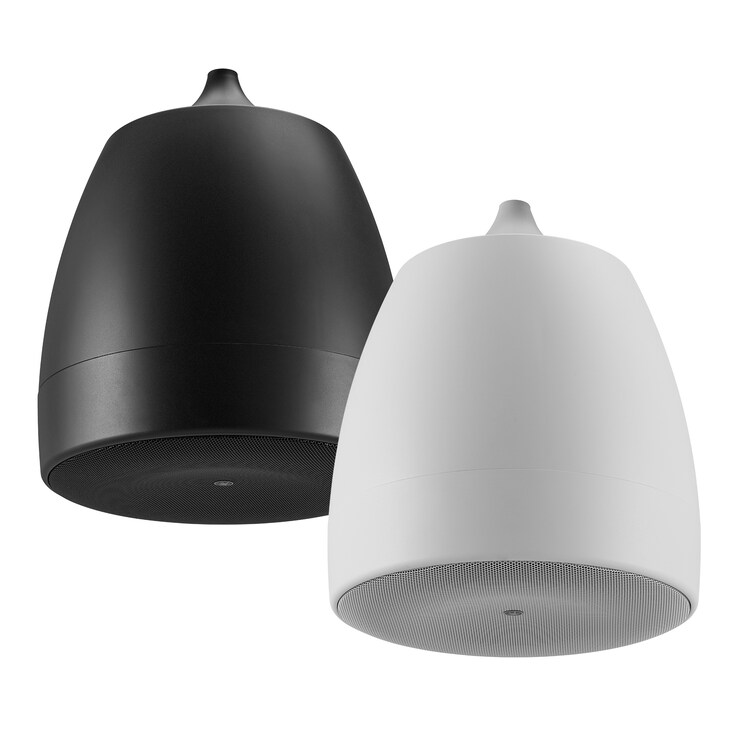

VXH8B / VXH8WPendant Speaker
2-way system with 8-inch woofer and 1-inch tweeter
- Narrow dispersion (75°) with "permeable" waveguide and 360W power handling
- Engineered for optimum BGM and voice reproduction
- Pendant speaker suitable for high, open structure or sloped ceilings
- Direct support for low-impedance or high-impedance connections
- Paintable grilles with magnetic catches
- 2 x 6 m steel wire cables by Gripple
- Black and white versions available
- 7.2 kg (15.9 lbs), Ø356 x D434 mm (Ø14-1/64” D17-3/32”)
- Single unit package

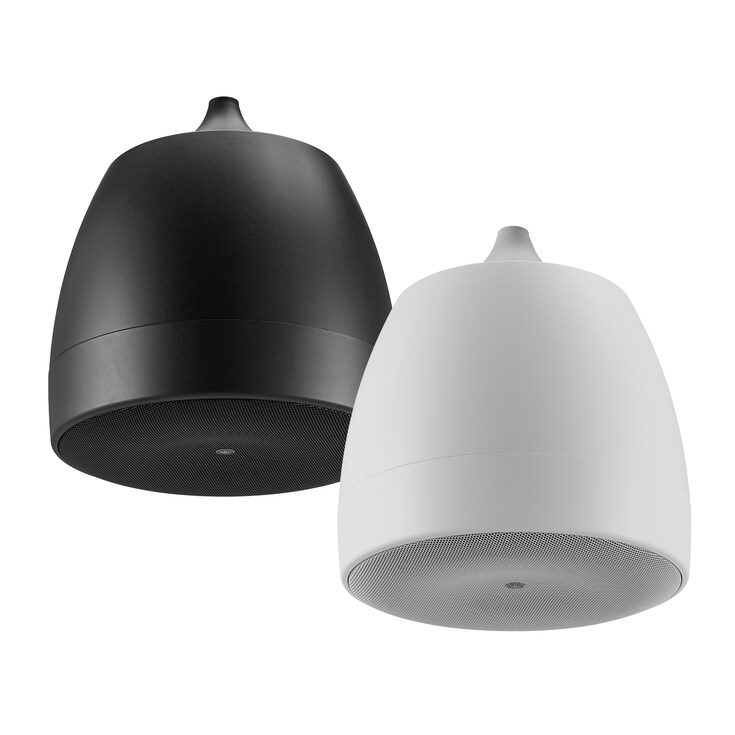

VXH6B / VXH6WPendant Speaker
2-way system with 6.5-inch woofer and 1-inch tweeter
- Wide dispersion (120°) and 300W power handling
- Engineered for optimum BGM and voice reproduction
- Pendant speaker suitable for high, open structure or sloped ceilings
- Direct support for low-impedance or high-impedance connections
- Paintable grilles with magnetic catches
- 2 x 6m steel wire cables by Gripple
- Black and white versions available
- 5.7 kg (12.6 lbs), Ø340 x D368 mm (Ø13-3/8” D14-1/2”)
- Single unit package
Características
Impresionante sonido desde cualquier techo
Los altavoces colgantes de la serie VXH son una opción ideal para techos inclinados o de estructura abierta, ya que agregan versatilidad para una variedad de entornos y necesidades de sonido.
Hay dos modelos disponibles: el VXH6 de 6,5 pulgadas de dispersión amplia para usar donde los altavoces se van a suspender en una posición relativamente baja, y el VXH8 de 8 pulgadas de alta potencia con dispersión más estrecha para posiciones de suspensión más altas. Puede seleccionar o mezclar y combinar modelos para lograr el mejor sonido y cobertura en cualquier aplicación.
Recommended Applications
Installations for high-ceiling, huge space and open structure or sloped ceiling such as amusement facility, Large hall sales floor, gymnastic hall and other design-conscious restaurant, clothing store,etc.
-
Amusement Facility (Aquarium)
-
Warehouse store
-

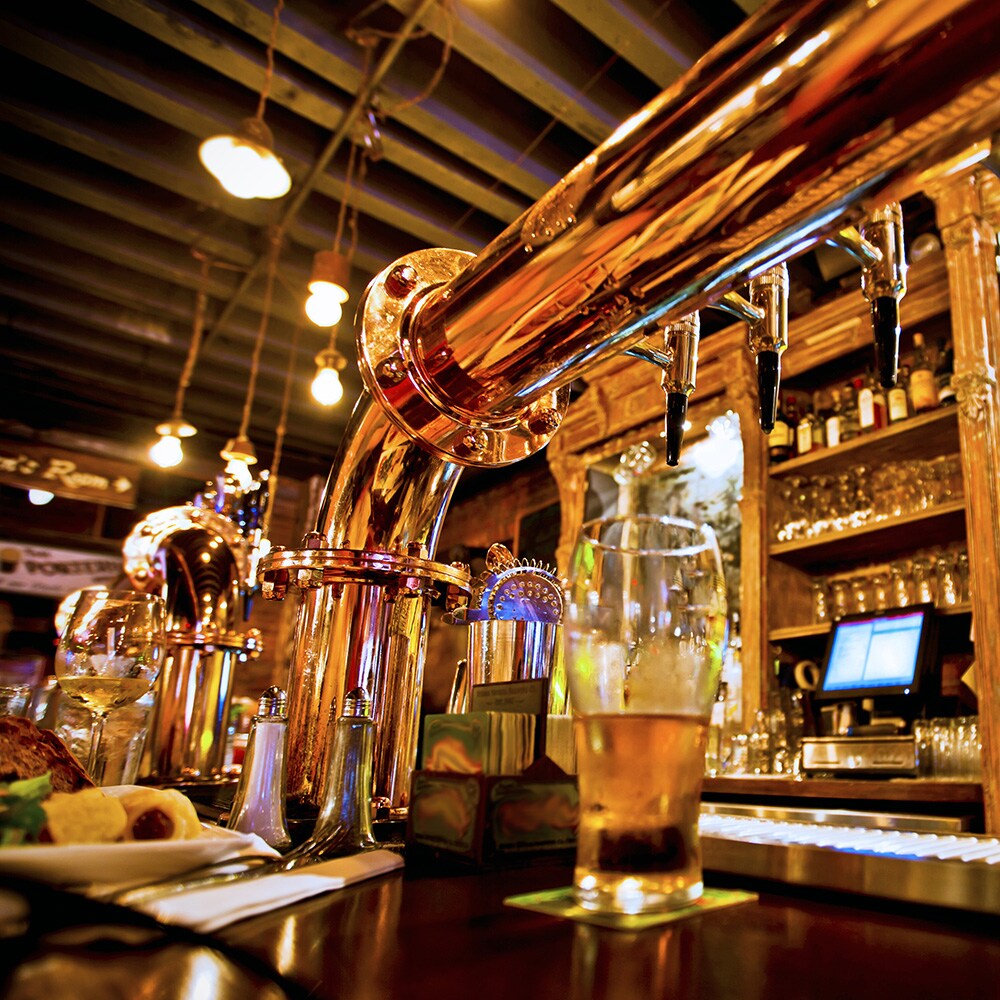

Restaurant (Beer Hall)

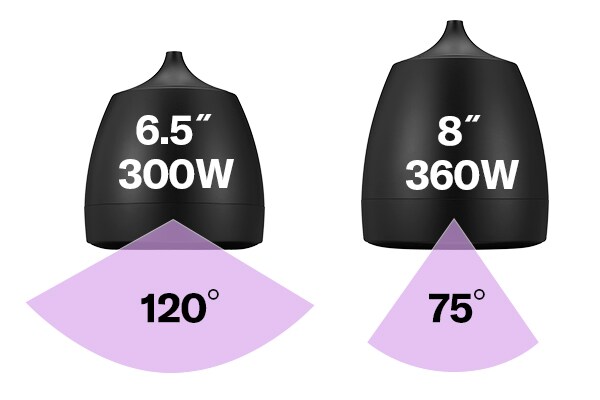

Models for a wide range of applications
Two models are available to adapt varying heights in a wide range of applications. The wide-dispersion 6.5-inch VXH6 is ideal for use where the speakers are to be suspended at a relatively low position, while the high-power 8-inch VXH8 has narrower dispersion that is suited for high suspension positions.

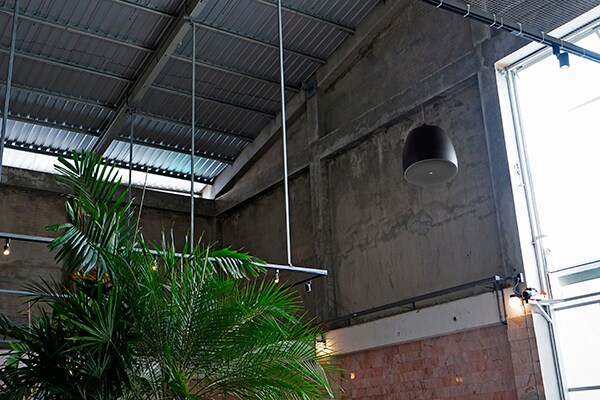

Stylish Yet Unobtrusive
Clean architectural settings require fixtures that seamlessly blend into their environments while maintaining full functionality. VXH series combine unprecedented acoustical performance and a music instrument inspired design that will be at home in a wide variety of settings.
World-class Installation Ease and Safety
Gripple suspension hardware and wire kit included for easy, safe height adjustment during installation.
High-impedance and low-impedance supported
Both high-impedance and low-impedance connections are supported, and speaker wattage can be easily switched even after installation. The need for additional units is minimized and systems can be designed to ideally meet the requirements of any application.
-

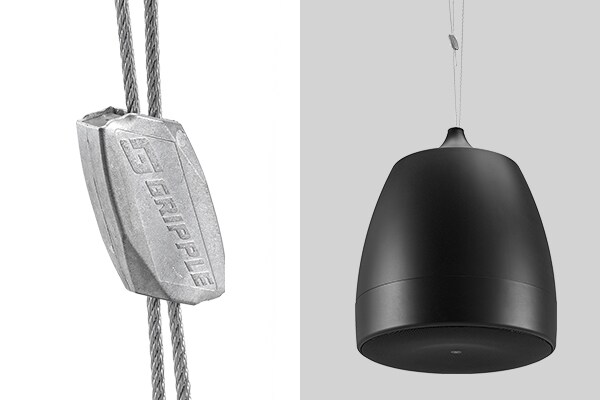

Secure Installation
A suspension hardware and wire kit from Gripple, the world standard in suspension products, ensure, safe height adjustment during installation.
-
Dust and Water Protection
VXH Series speakers are IP45 rated for use in a wide range of environments, including outdoors.
* Not for use in humid places.
-

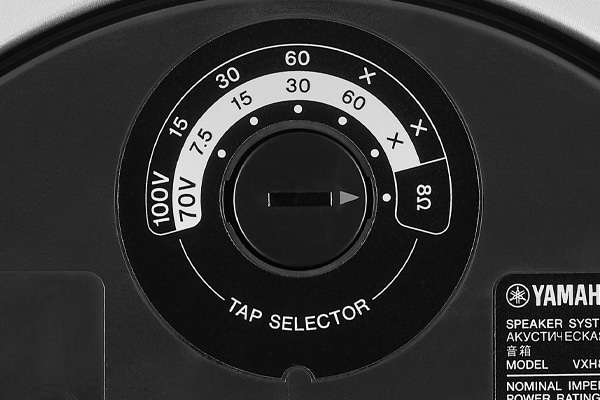

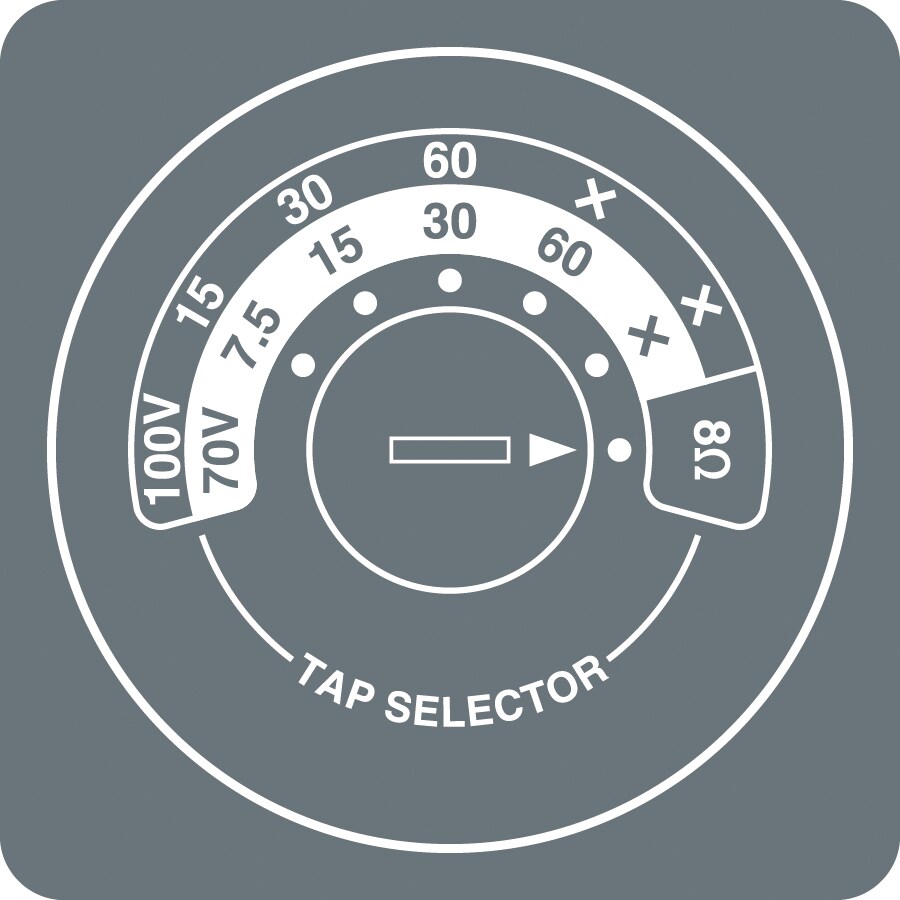

Hi-Z or Lo-Z
Both high-impedance and low-impedance connections are supported, and speaker wattage can be easily switched even after installation.
-
Portable
A built-in “carrying band” not only makes the speaker easy to carry around, but also increases safety when working on a stepladder.
-
Paintable
The supplied grilles can be painted any color to match interior decor.
Sistemas

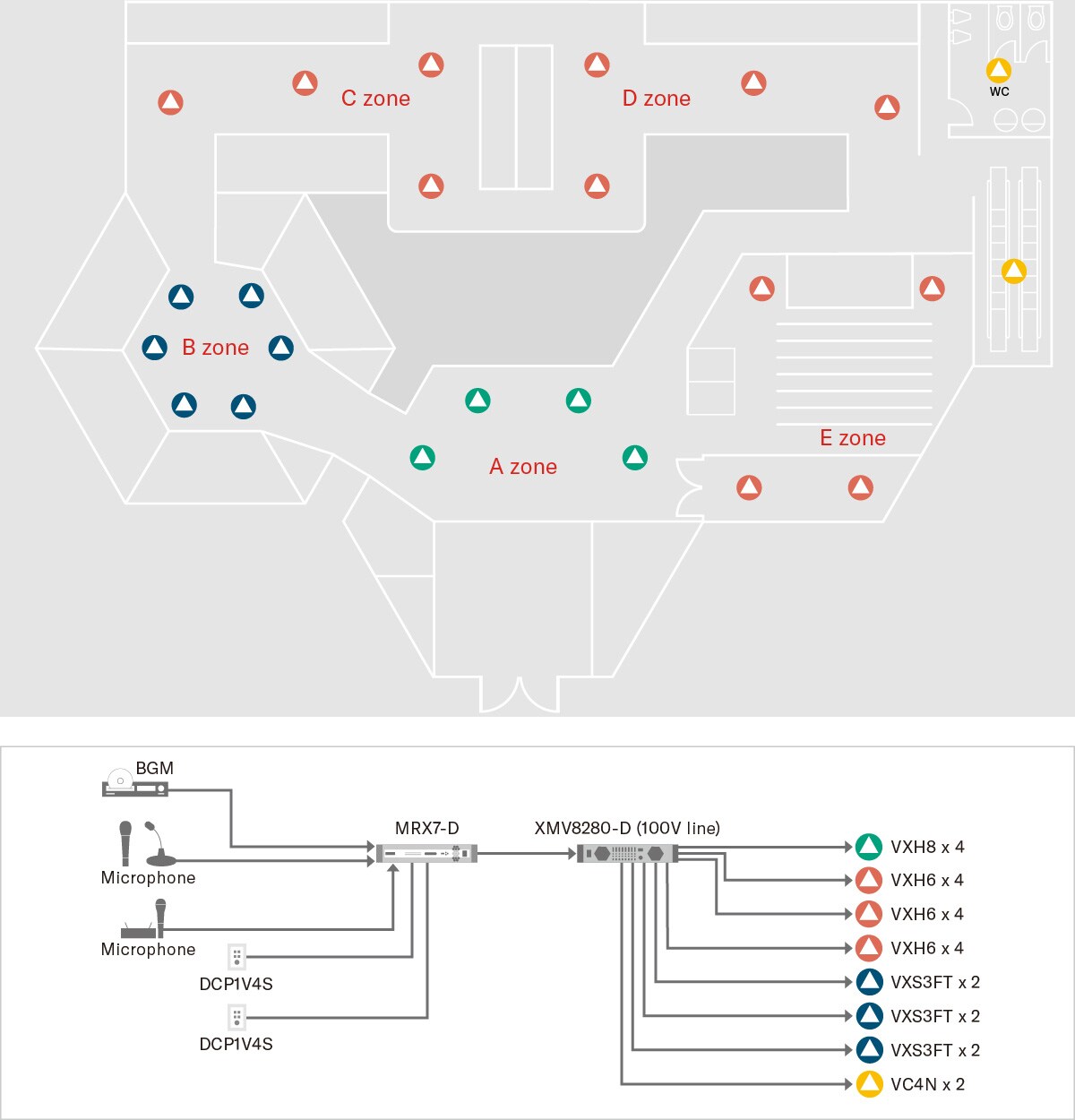

Amusement Facility (Aquarium)
VXH Series speakers can be a huge advantage in amusement facilities where sound is essential and ceilings are high. Sloped or curved ceilings can make installation even more of a challenge. Pendant speakers can be installed easily at any required height in such situations. In this example, VXS1ML speakers are also installed to provide sound at locations where the ceiling is low and space is limited.
Warehouse store
VXH Series pendant speakers are ideally suited for installation in warehouse stores that have high open structure ceilings. Ample high SPL allows the speakers to be mounted high above the floor while maintaining sufficient volume and outstanding sound quality.

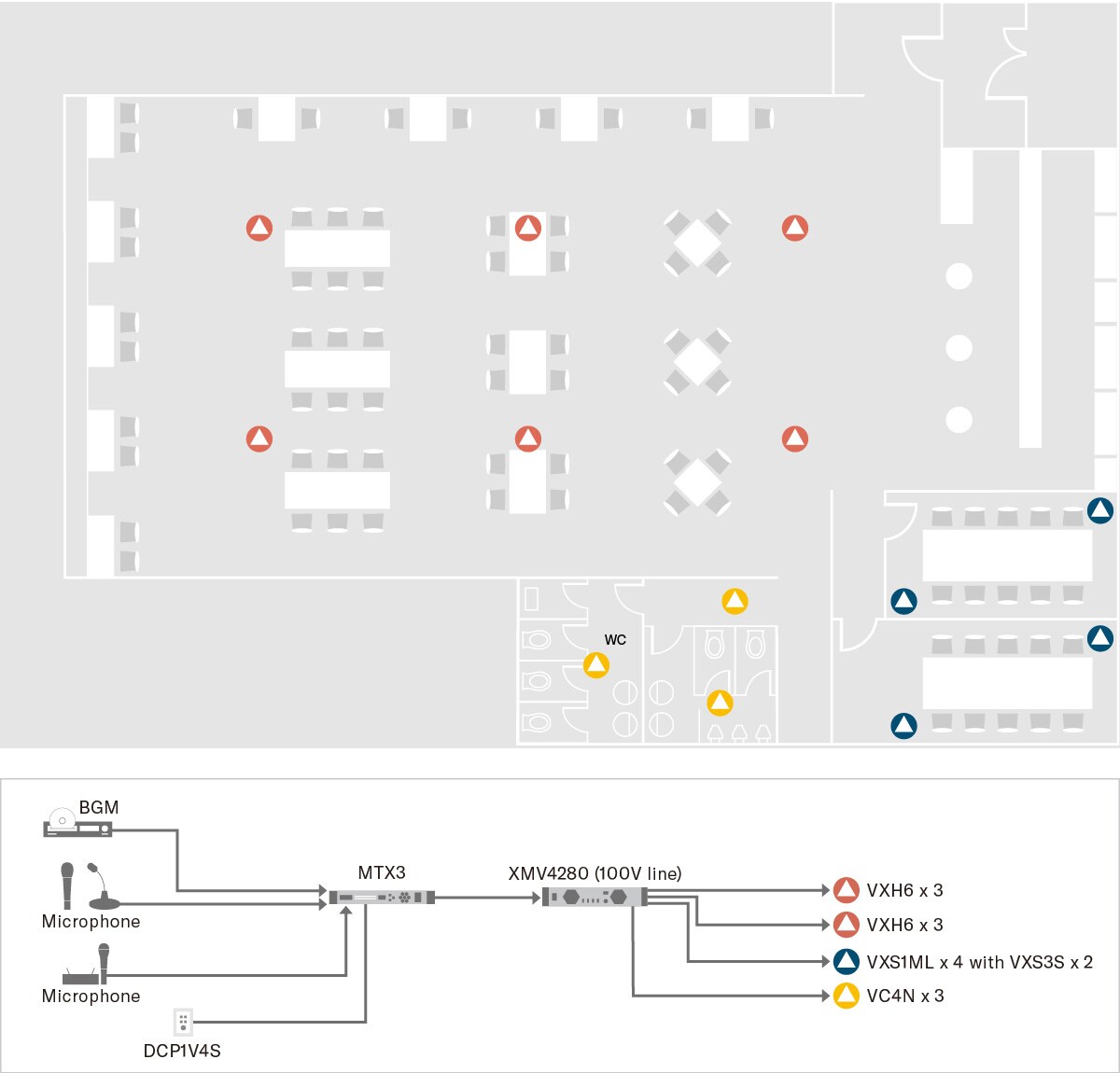

Restaurant (Beer Hall)
VXH Series speakers won’t disrupt the atmosphere in restaurants with high ceilings that are also designed to create a specific mood. The arched hall in this example has a high ceiling that would make installation of standard ceiling speakers difficult. VXH series speakers can be freely positioned for optimum sound coverage. VXS1ML speakers and subwoofers are installed in the private rooms for seamless coverage, while VC4N speakers are used in the rest rooms and hallway.
