«Modelo S» Serie VXC

Yamaha Ceiling subwoofer VXC Series "S model"

Alineación

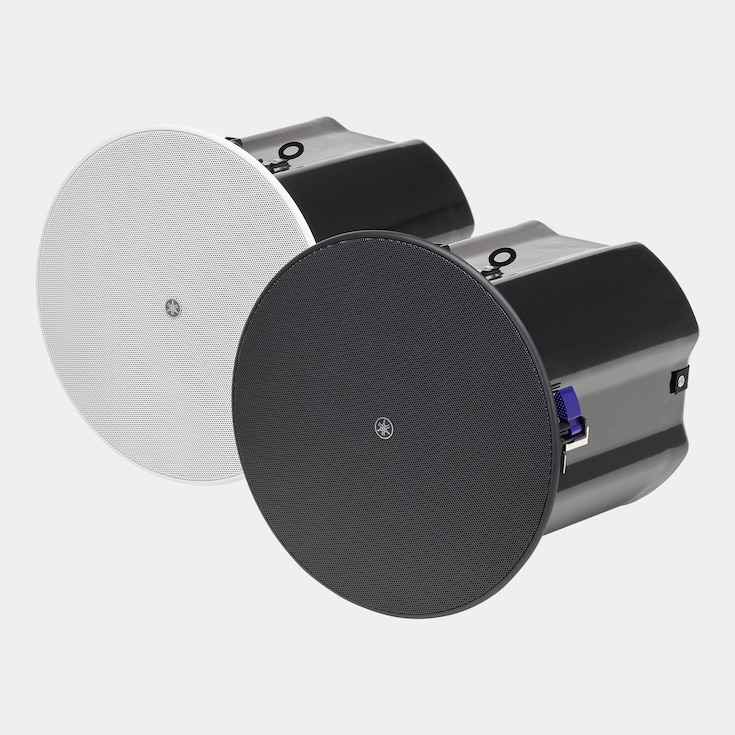

VXC8SB / VXC8SWCeiling subwoofer

Yamaha Ceiling subwoofer VXC8SB / VXC8SW

8" ceiling subwoofer

Sound and size ideally matched to the VXS and VXC series
Band-pass design ensures smooth, distortion-free low-frequency extension
Direct support for low-impedance or high-impedance connections
Built-in carrying band increases safety during installation
Anti-drop tab mechanism provide secure temporary positioning during installation
Double-threaded speaker clamp screws for speedy tightening
Paintable grilles with magnetic catches
Black and white versions available
8.7kg (19.2lbs), Ø324 x D314 mm (Ø12-13/16" x D12-23/64")
AB-C8S (sold separately) is required to secure safe installation of VXC8S

AB-C8SSpeaker accessory

O-ring + Tile Rail kit for VXC8S

AB-C8S (sold separately) is required to secure safe installation of VXC8S

Características

Los graves naturalmente extendidos dan vida a la música

Los subgraves de techo «modelo S» de la serie VXC son la combinación ideal para los altavoces de las series VXS y VXC, extendiendo suavemente el rango de baja frecuencia con una excelente calidad de sonido para una reproducción musical más contundente y más real sin estropear el diseño interior de las arquitecturas.

A Choice of Models for All Low-frequency Needs

Luxurious bass response can enhance musical presence and realism in a big way. The enclosures of VXC series S models incorporate a band-pass design to reduce unwanted vibrations and noise, making it possible to achieve a higher SPL.

Band-pass structure of VXC8S

Smart Design for Safer, Faster Installation

The VXC-S ceiling speakers come with smart mechanical features that contribute to significantly safer, faster installation. And since these models support both low-impedance and high-impedance connection, the need for extra stock is minimized and systems can be designed to ideally meet the requirements of any application.

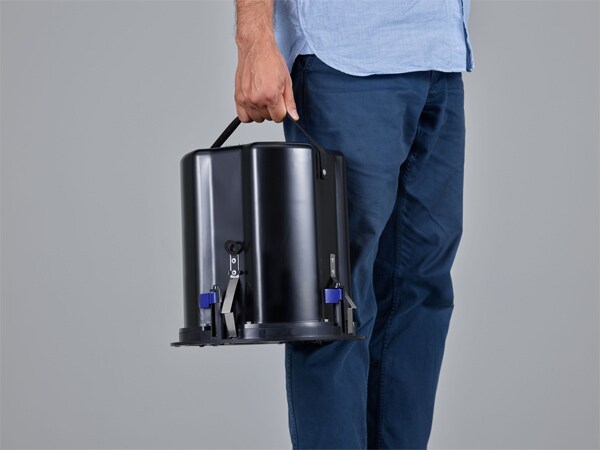

Carrying Band
Anti-Drop Tab

Hi-Z or Lo-Z

Both high-impedance and low-impedance connections are supported, and speaker wattage can be easily switched even after installation.

Portable

A built-in "carrying band" not only makes the speaker easy to carry around, but also increases safety when working on a stepladder.

Secure

An anti-drop tab mechanism securely holds the speaker in place so that the installation can proceed safely and efficiently. There’s also a release lever that allows the speaker to be smoothly removed from the ceiling as required.

Fast

Double threaded screws used for the speaker clamp mechanism allow the clamps to be tightened twice as fast as conventional screws.

Streamlined

The supplied speaker grilles are firmly and elegantly held in place by powerful magnets. An anti-drop wire is also included.

Paintable

The supplied grilles can be painted any color to match interior decor.

VXS/VXC Series Painting Guide

Sistemas

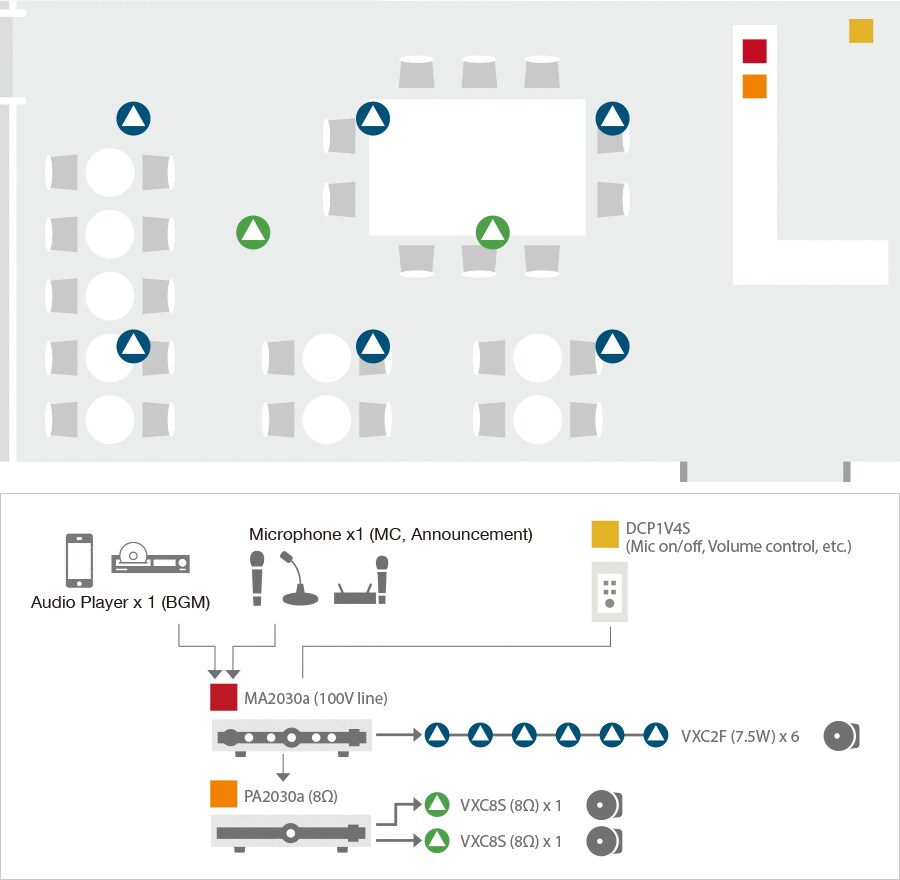

System Example: Cafe

With VXC2F speakers and a mixer amplifier MA2030a, it is possible to create a streamlined, high-performance system that allows microphone use while background music is being played. Add a power amplifier PA2030a and a ceiling subwoofer VXC8S to create enriched ambient.
