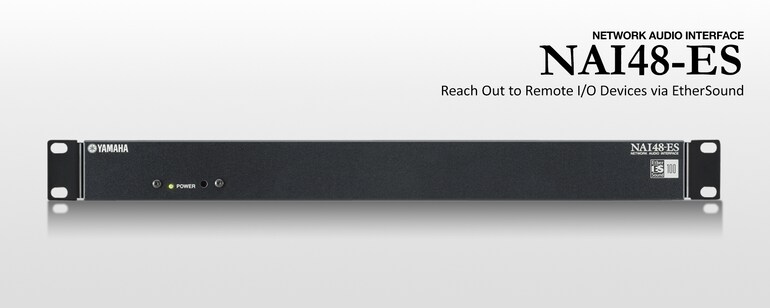

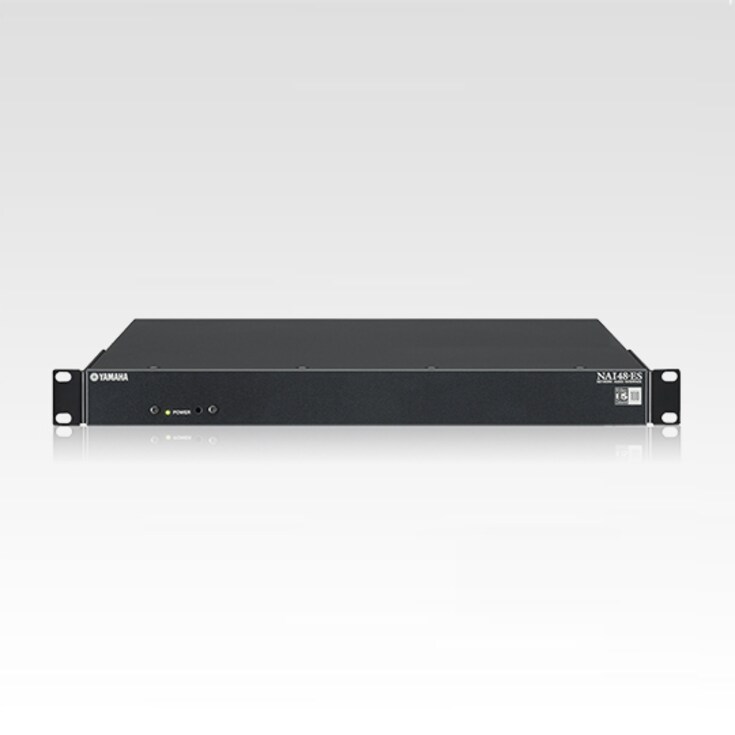

Una interfaz EtherSound y AES/EBU de 48 canales rápida y fácil de configurar y utilizar.
- Transfer up to 48 channels of digital audio between console and stage or any other location via a single CAT5e Ethernet cable at sampling rates up to 96 kHz.
- Este tipo de sistema elimina los problemas de ruido inevitables con las mesas analógicas convencionales y configuraciones de tipo multicable, y reduce considerablemente la longitud del cable del micrófono para la obtención de una calidad de sonido superior.
- Las 48 entradas AES/EBU y las 48 salidas AES/EBU se proporcionan a través de conectores D-sub de 25 patillas.
- Designed with Yamaha professional sound gear in mind: minimum setup hassle, trouble-free operation.
- An external power supply can be used in addition to the internal power supply for redundant failsafe operation.
- Use standard Ethernet hubs and routers to create any network configuration you need.
Características
Connect Yamaha digital mixing consoles or DME processors to remote head amps or AD/DA converters via EtherSound for analog interfacing wherever needed
The NAI48-ES is a digital audio network interface that uses the EtherSound network protocol. Digital mixing consoles such as the Yamaha PM5D, M7CL, or LS9 can be connected to AD8HR 8-channel microphone preamp/AD converter or DA824 DA converter units via the NIA48-ES for remote analog input or output interfacing on stage or wherever needed. This type of system eliminates noise problems that are unavoidable with conventional analog console plus multi-cable type setups, and dramatically reduces microphone cable length for superior sound quality. Cabling between the console and "stage box" units is also simplified for fast, easy setup.
48 canales de audio digital en ambas direcciones a través de un cable Ethernet Cat-5
The NAI48-ES is a digital interface that lets you transfer up to 48 digital inputs and 48 digital outputs between console and stage or any other location via a single Cat-5 Ethernet cable. 48 AES/EBU inputs and 48 AES/EBU outputs are provided via 25-pin D-sub connectors. The AES/EBU inputs and outputs can be directly connected to a wide variety of digital front-end devices such as Yamaha AD8HR 8-channel remote head amps for top-quality line or microphone input, as well as a range output gear.
Conexión de red EtherSound™
The NAI48-ES employs EtherSound networking technology to transfer multiple channels of digital audio over standard Ethernet cable with extremely low latency. This advanced, easy-to-manage protocol is designed to handle up to 64 channels of digital audio, and will easily transfer 48 channels of 24-bit 48-kHz audio in both directions over distances up to 100 meters with appropriate high-performance cables. The most convenient way to add EtherSound capability to Yamaha digital mixing consoles is to install one or more AuviTran AVY16-ES EtherSound cards in the console's Mini-YGDAI card slots, according to the performance and channel capacity required. Then you can simply connect a standard Cat-5 Ethernet cable between the console and NAI48-ES to transfer all audio channels plus remote control signals for compatible devices such as the AD8HR remote head amplifier. You can even use standard Ethernet hubs and routers to create any network configuration that suits your needs.
Calidad, compatibilidad y fiabilidad de Yamaha incondicionales
The NAI48-ES is not the only network device of this type, but it is without a doubt the best choice if maximum quality and economy are important criteria. The NAI48-ES delivers superior digital audio performance and networking capability at a cost that cannot be matched at the current time. And because it's designed with Yamaha Commercial Audio sound equipment in mind you can rest assured that it can be set up with minimum hassle and will operate trouble-free. For even further reliability assurance you can use the internal power supply plus an external redundant power supply unit for dual failsafe operation.
* Las especificaciones están sujetas a cambios sin previo aviso. Los colores y acabados mostrados pueden variar de los de los productos reales.
